LED control | 12-36 Vdc
Power extension.

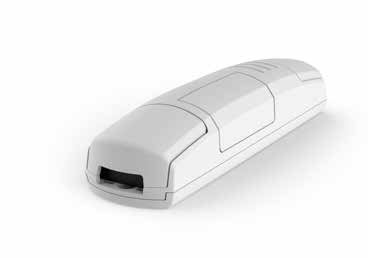

TOP-V8/EXT4 is the electronic control unit for increasing the load controlled by the control units with constant voltage. It is possible to connect up to 4 extender-slaves ensuring high power synchronized commands. The compact size means they can be easily installed on false ceilings and junction boxes.
COMPATIBLE CONTROL UNITS
• TOP-V8/4
• TOP-V8/RGBW
• TOP-V8/CCT2
Power supply 12-36 VDC
Output Max load 8A per output:
90 W (with 12Vdc)
180 W (with 24Vdc)
270 W (with 36Vdc)
Type of load LED with constant voltage
Protection rating IP20
Operating temperature -20 +55 °C
Dimensions 174x46x35 mm
