Dimmer | LED with constant voltage | 12-24 VDC
Control of single colour LEDs with constant voltage.

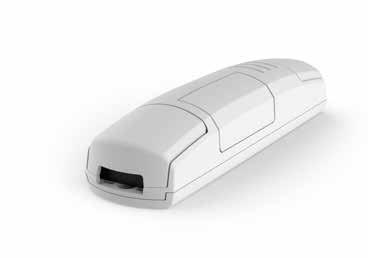

TOP-V8/4 is the electronic control unit with dimmer function for wireless and wired control of LEDs with constant voltage. The 4 synchronisable outputs, each with maximum consumption of 8A and the option of connecting up to 4 further extenders, enable synchronised control of high powers. Three wired inputs with button. Wide-ranging and accurate dimmer function; fade on and off that can be set to between 0 and 10 seconds. The ISM (industrial, scientific and medical) radio frequency band guarantees a long range, even through walls and ceilings. Programming via the display is quickand intuitive while its compact size means it can be easily installed in false ceilings and junction boxes.
Power supply 12-36 VDC
Output: Max load 8A per output (24A in total):
90 W (con 12Vdc) per output
180 W (with 24Vdc) per output
270 W (with 36Vdc) per output
Type of load LED with constant voltage
No. prog. transmitters 40
Radio frequency 433.920 MHz ISM
Protection rating IP20
Operating temperature -20 +55 °C
Dimensions 174x46x35 mm
