Push Dim Interface
Light intensity under control.

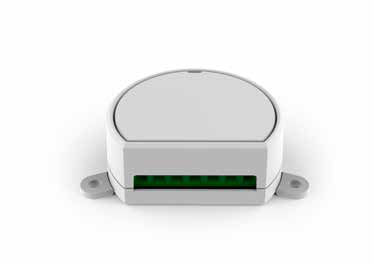

MCU-PUSH is the radio interface for driver LED wireless control with "push dim" dimmable interface. The Nexta Tech radio control can send On/Off commands (press and release) and dimming commands (press and hold). The ISM (industrial, scientific and medical) radio frequency band guarantees a long range, even through walls and ceilings. Simple programming with dip-switches, and reduced dimensions with breakable tabs for fixing with screws or for inserting in junction boxes, 55 mm in diameter.
Power supply 110-240 Vac
Output
Dry contact
Max 5A
for push-dim
dimming
Radio frequency 433.92 MHz ISM
Protection rating IP20
Operating temperature -20 +55 °C
Dimensions 52 x 42 x 21 mm
